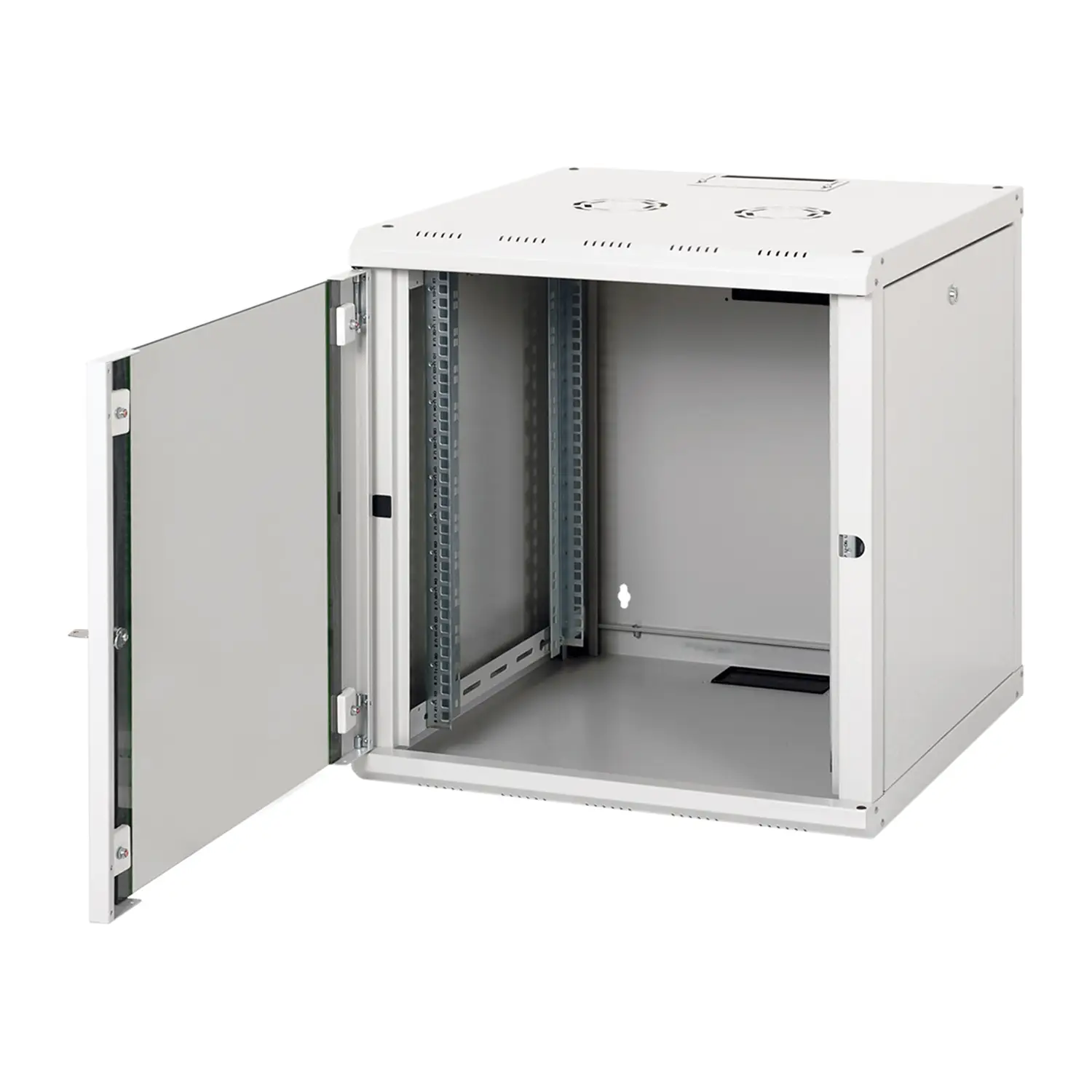

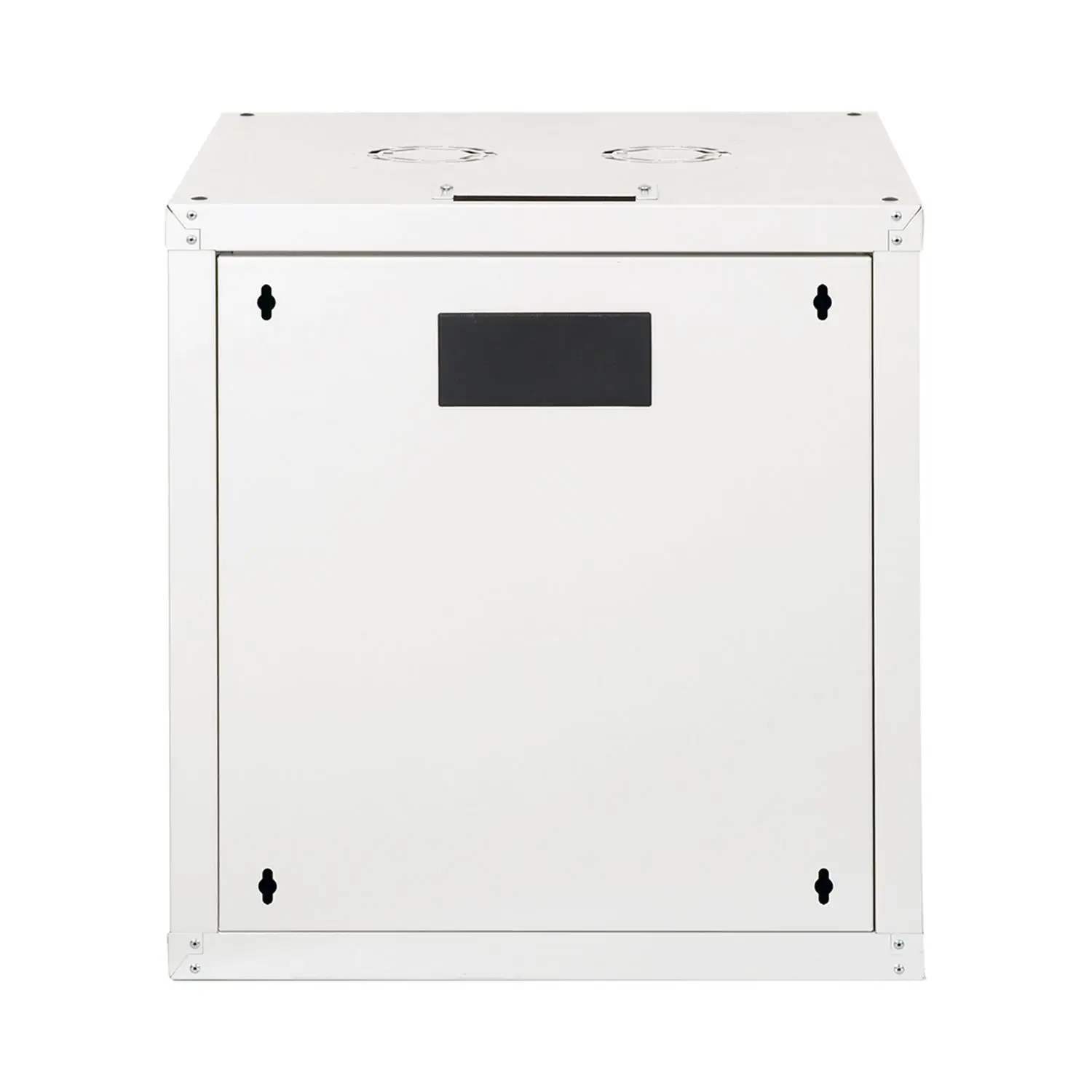

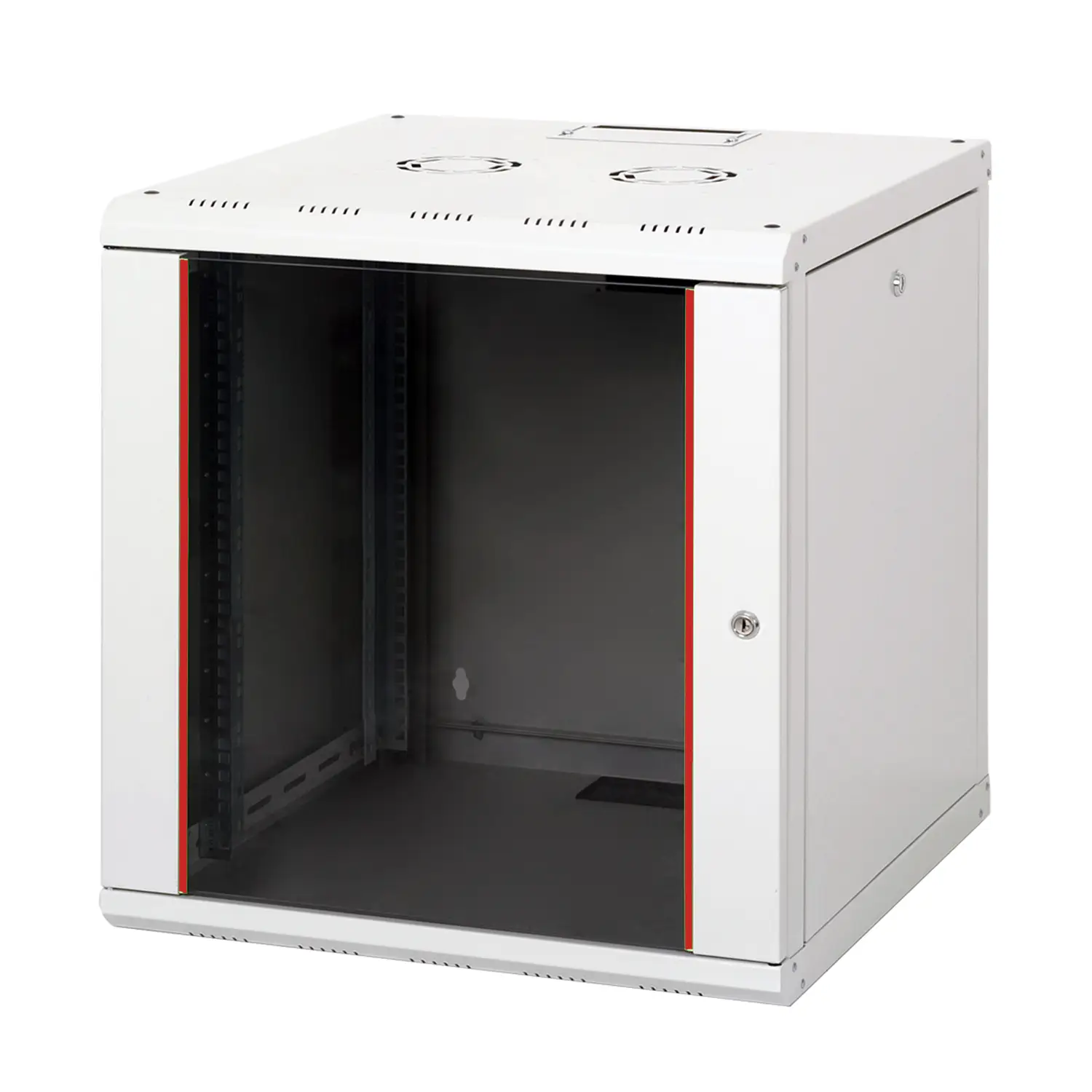

Lande PROline Series 600*600 12U - RAL 7035 Light Gray

LANDE 19" PROline Series Wall Mounting Cabinets are professional enclosure solutions designed for network infrastructures and supplied as fully assembled units. The series has a nominal 100 kg wall mounting load capacity and has been tested with 3 times the nominal load. It is suitable for Switch, Patch Panel, cabling equipment, telecommunication equipment, UPS, and battery applications.

The PROline Series is available in W=600 mm width with D=450 mm and D=600 mm depth options, and 7U, 9U, 12U, 16U, and 20U height alternatives. The cabinets are supplied as standard with a safety glass front door, lockable removable side panels, and a rear panel. D=450 mm models include 2 adjustable 19" mounting rails, while D=600 mm models are supplied with 4 adjustable 19" mounting rails.

Passive ventilation slots and an optional fan installation on the top panel, a rubber-edged sliding cable entry system, and removable front door and side panels simplify installation and maintenance. Nanotechnology pre-treatment, Bonderite/Henkel chemical pre-treatment, and an 80–120 micron epoxy powder coating provide 500+ hours salt spray test performance. The series is available in RAL 7035 Light Grey and RAL 9005 Black.

Features

• Product Type: 19" PROline Wall Mounting Cabinet
• Application: Network, Telecommunication, UPS, and Cabling Applications
• Height: 7U / 9U / 12U / 16U / 20U
• Width: 600 mm
• Depth: 450 mm / 600 mm
• Wall Mounting Load Capacity: 100 kg
• Tested with 3 times the nominal load capacity
• Safety glass front door
• Lockable removable side panels
• Adjustable 19" mounting rails
• Passive ventilation slots with optional fan installation
• Rubber-edged sliding cable entry system
• Nanotechnology pre-treatment
• Bonderite/Henkel chemical pre-treatment
• 80–120 micron epoxy powder coating
• 500+ hours salt spray test performance
• Color: RAL 7035 Light Grey / RAL 9005 Black
• Standards: ISO 9001, EN 61587-1, EN IEC 60297, EN IEC 60917, IP20, IK07, EIA/ECA-310, CE, EN IEC 62368-1, UL 2416, ISO 14001, RoHS

Advantages

• Supplied as a fully assembled cabinet.
• Tested with 3 times the nominal load capacity.
• Safety glass front door and removable side panels provide 3-way access for equipment installation and maintenance.
• Rubber-edged sliding cable entry system helps secure cables and reduce dust ingress.
• Top panel supports optional fan installation for active ventilation.
• Wide range of U height options for different network infrastructure requirements.
