PROline Performance Series

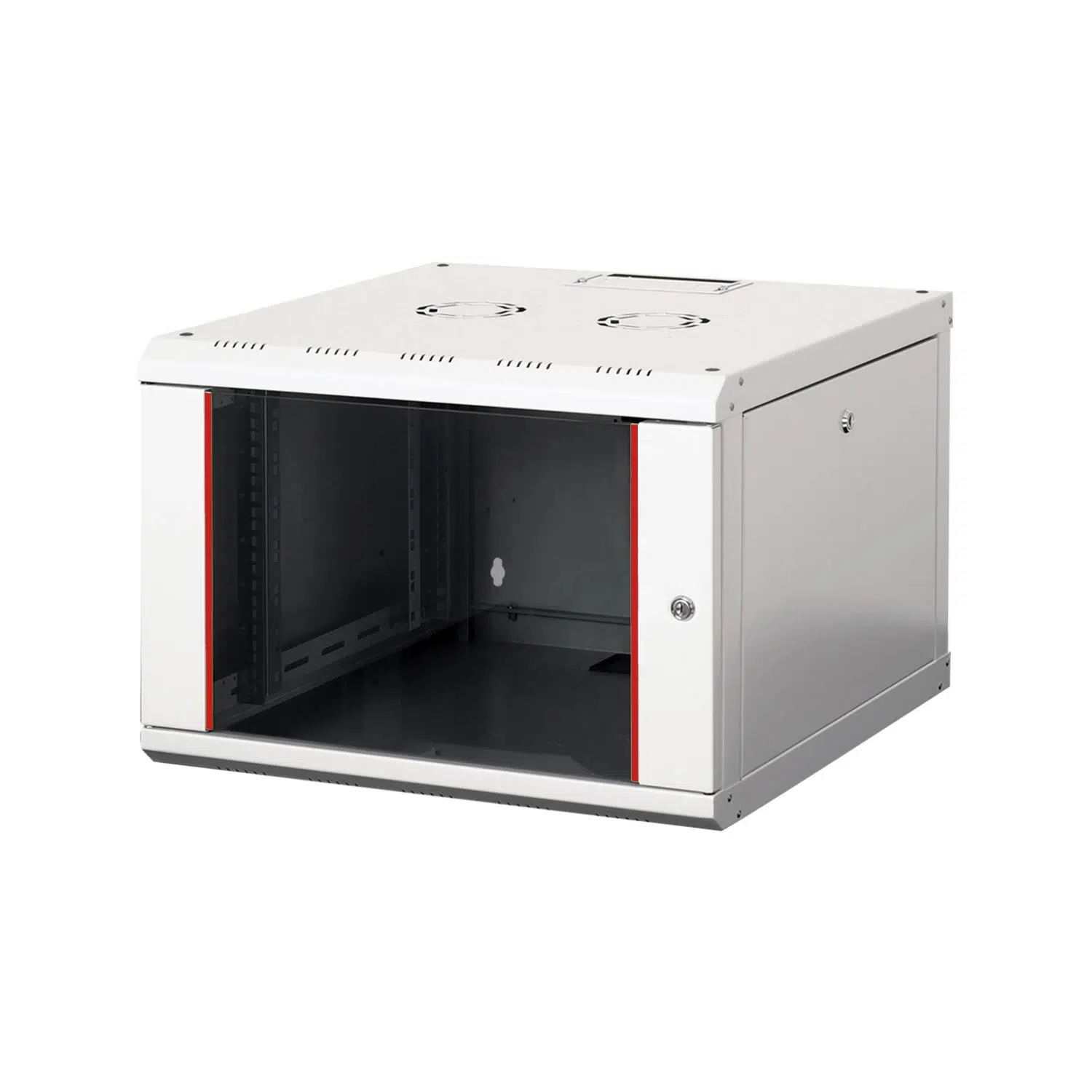

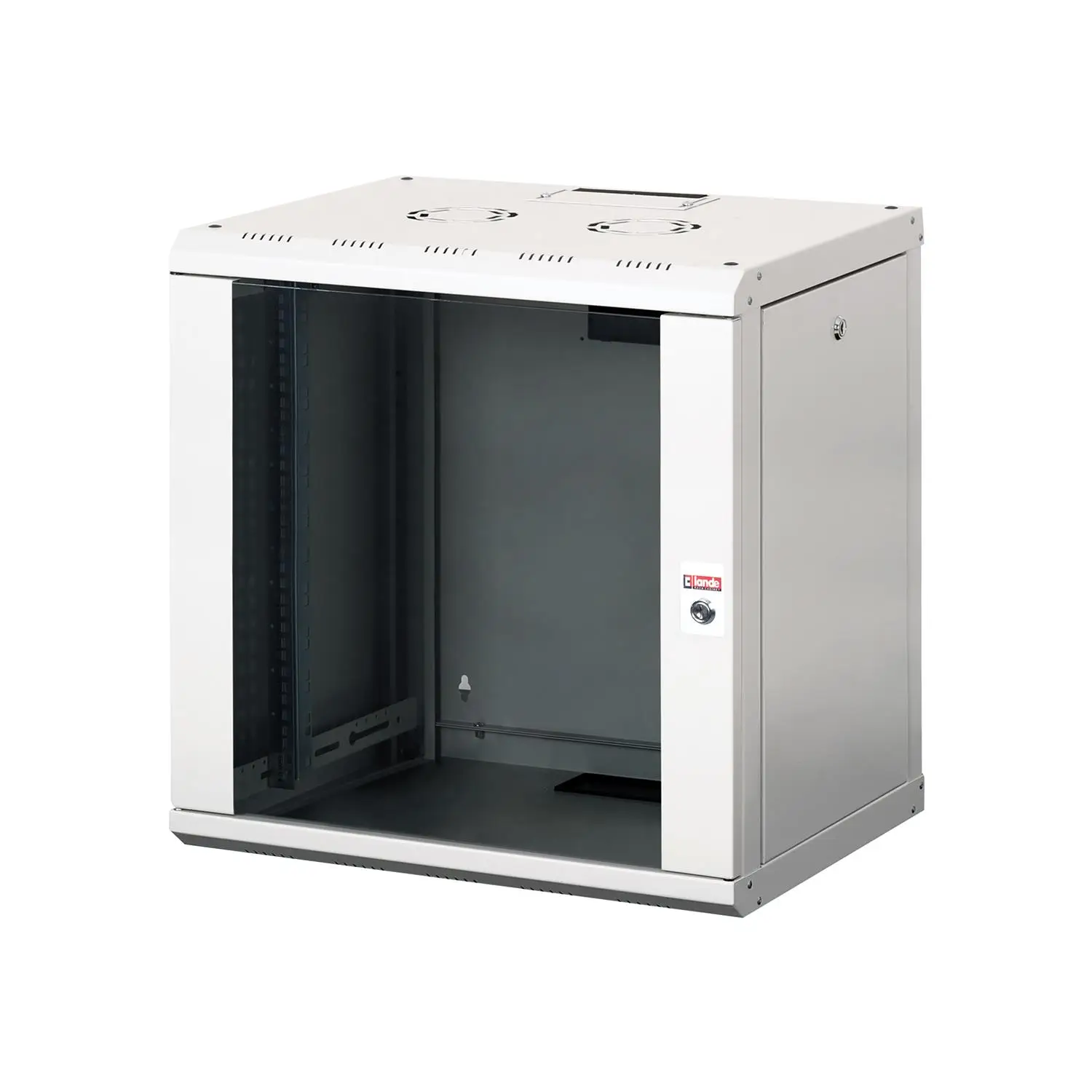

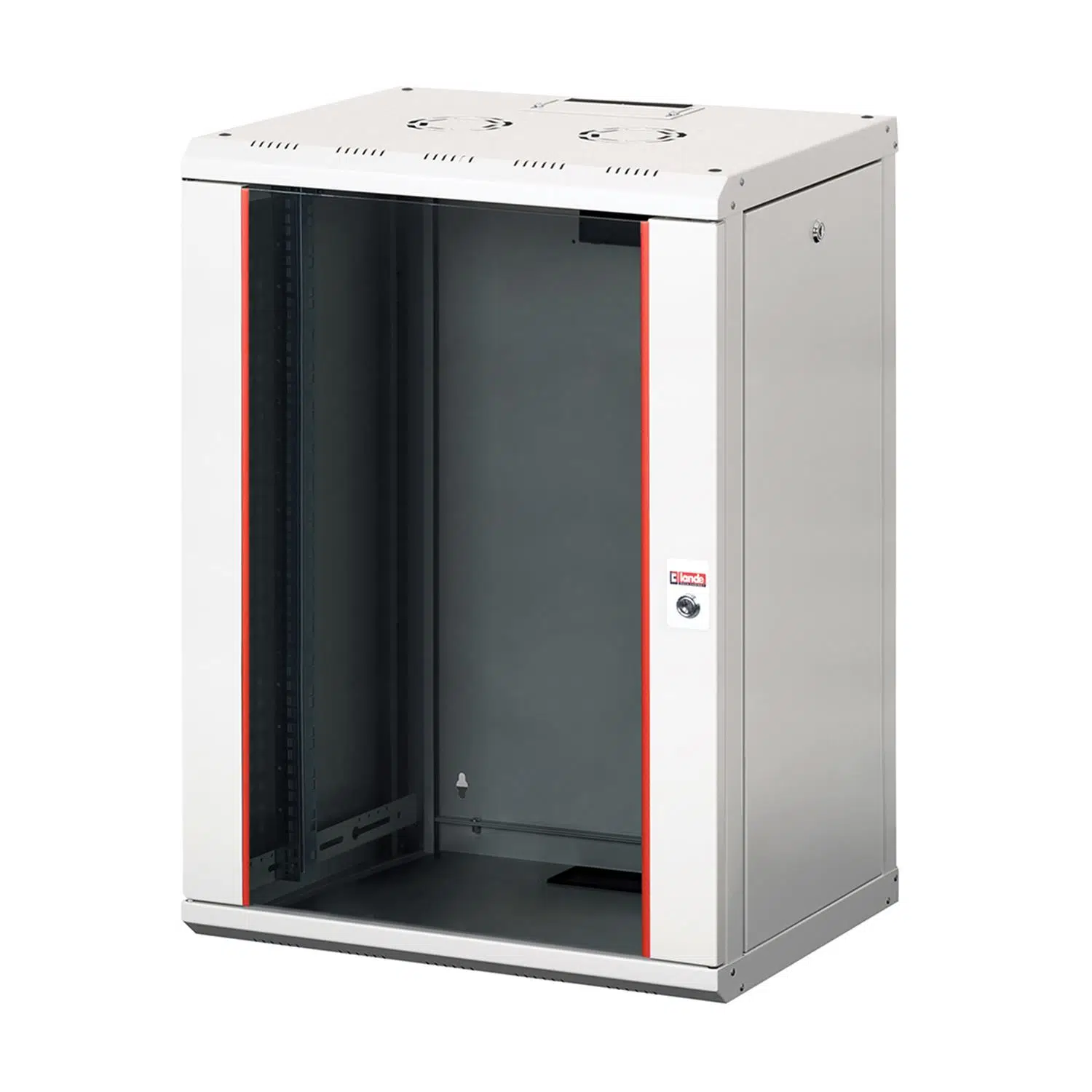

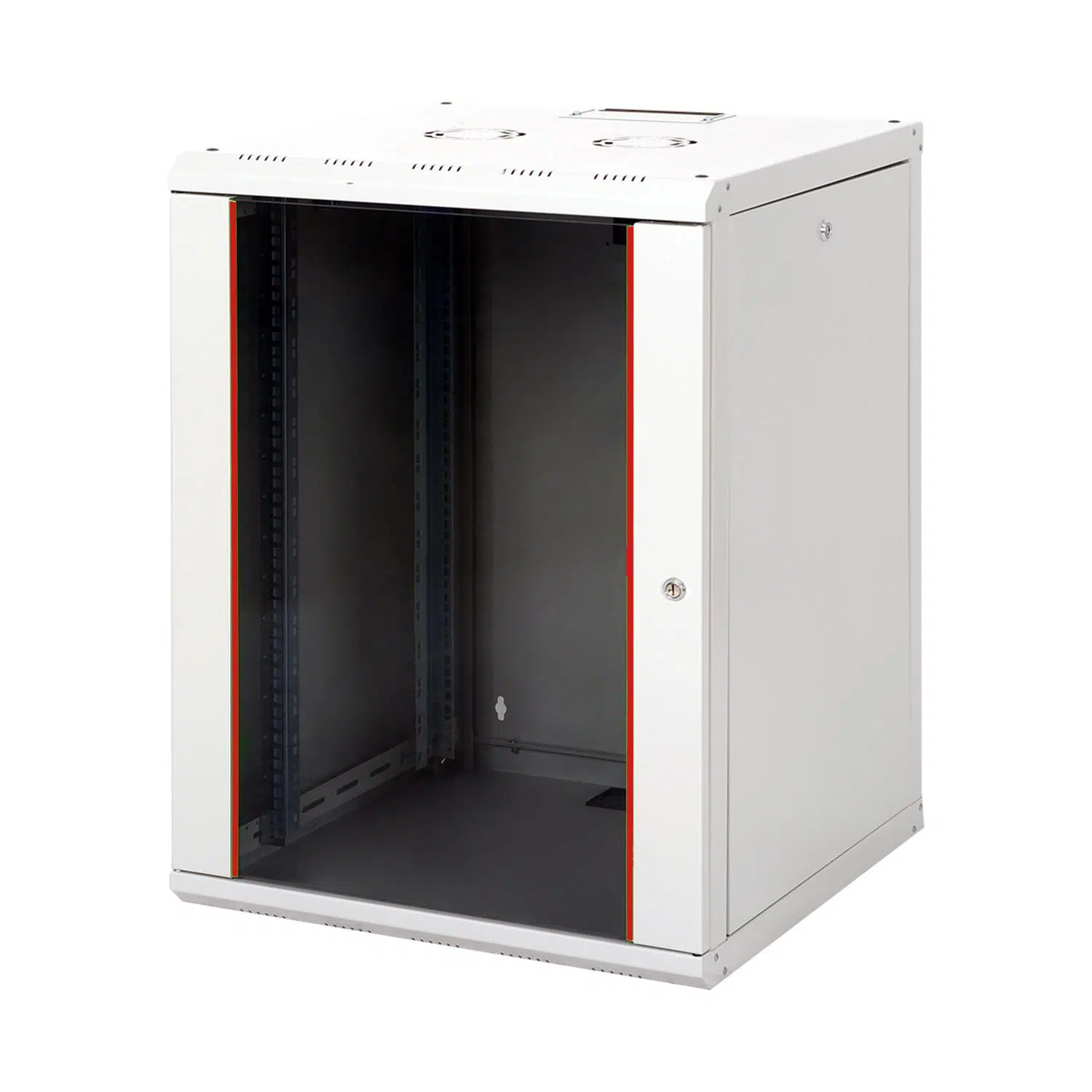

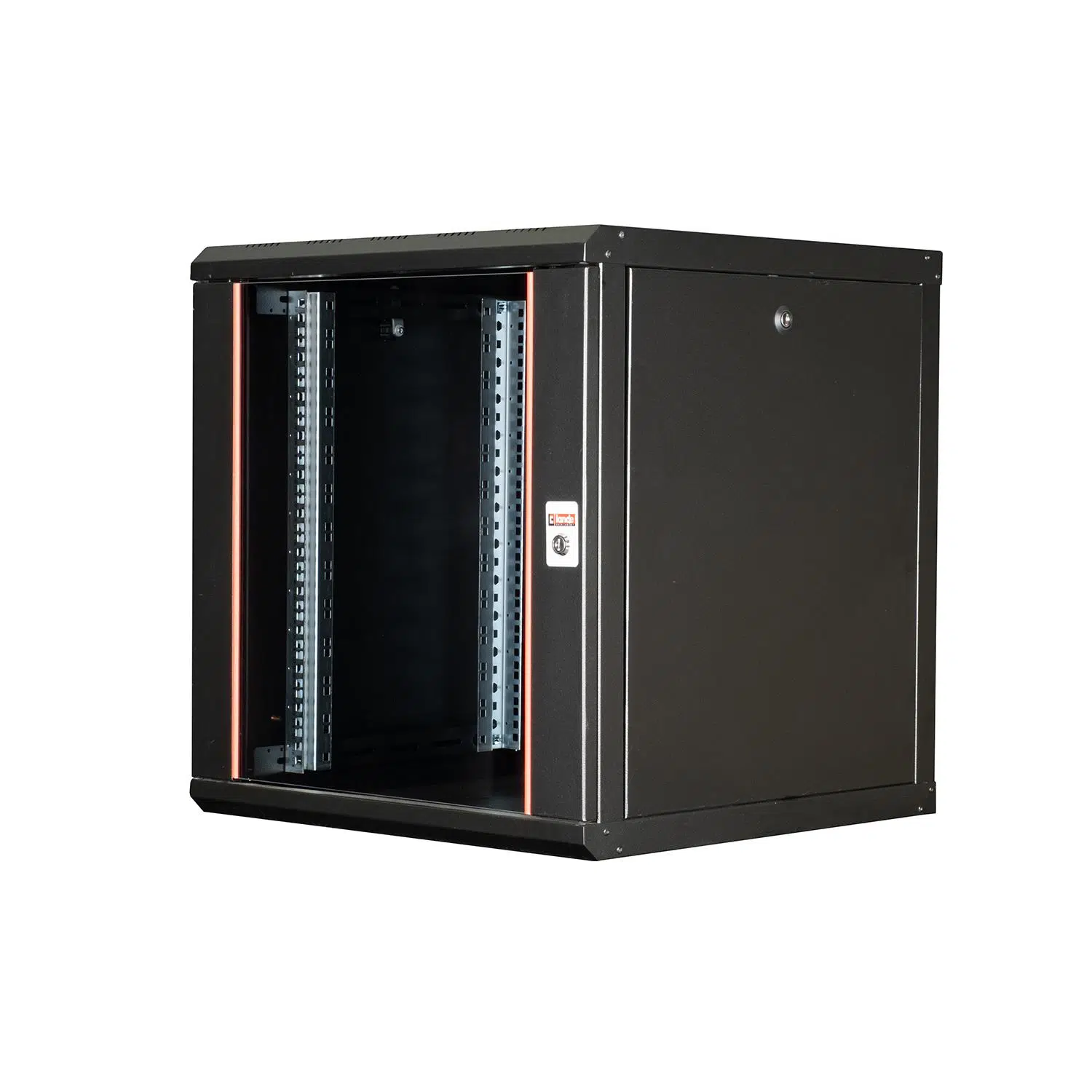

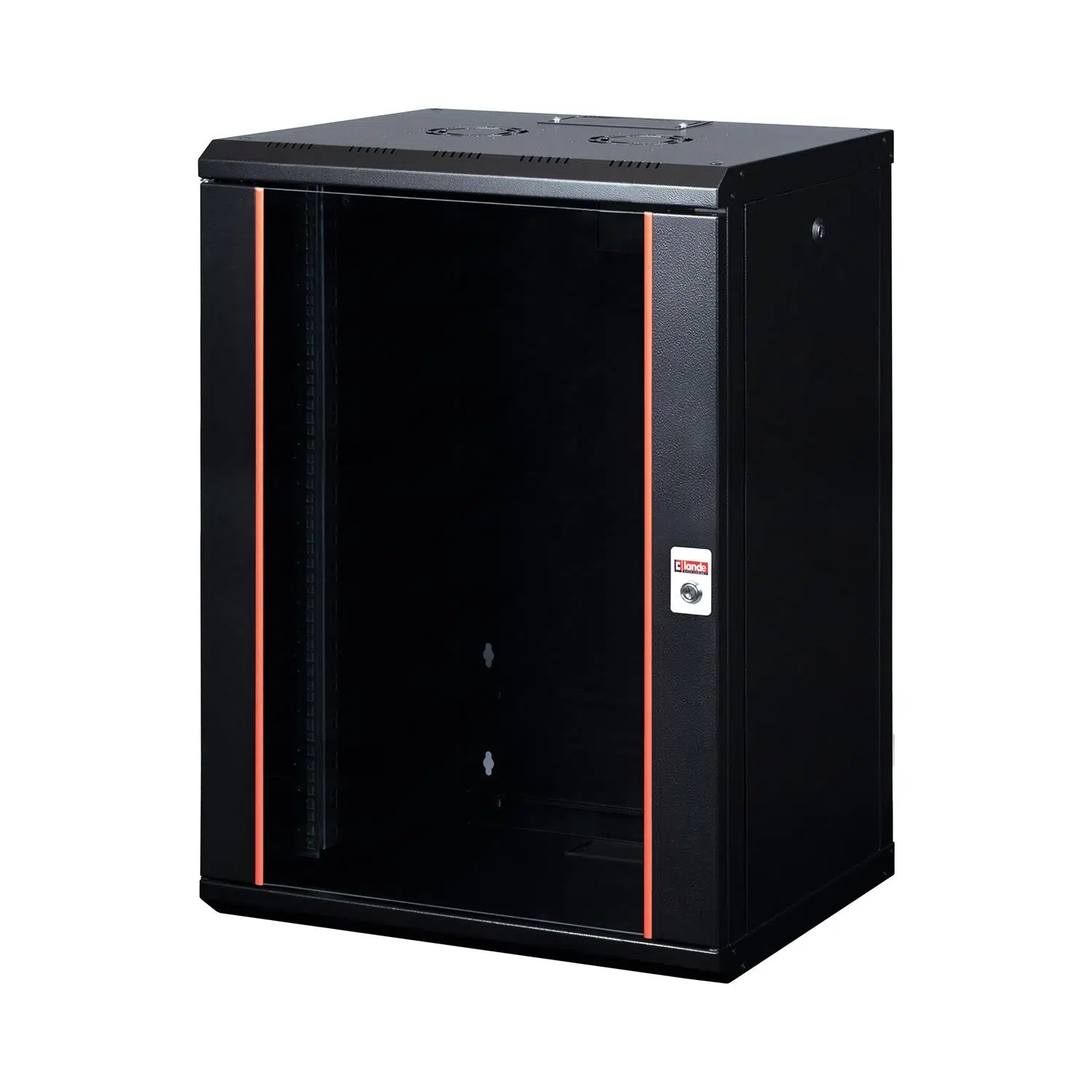

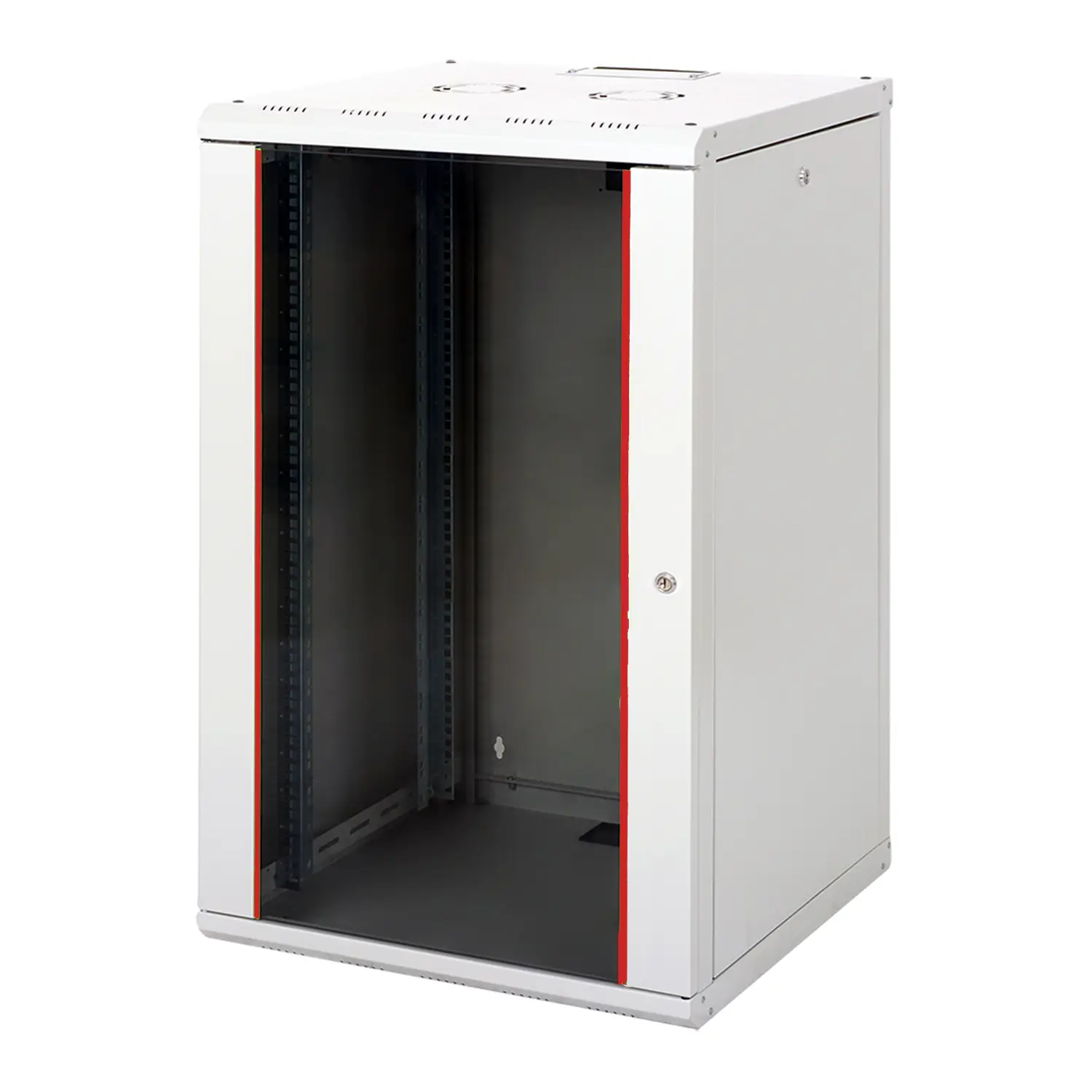

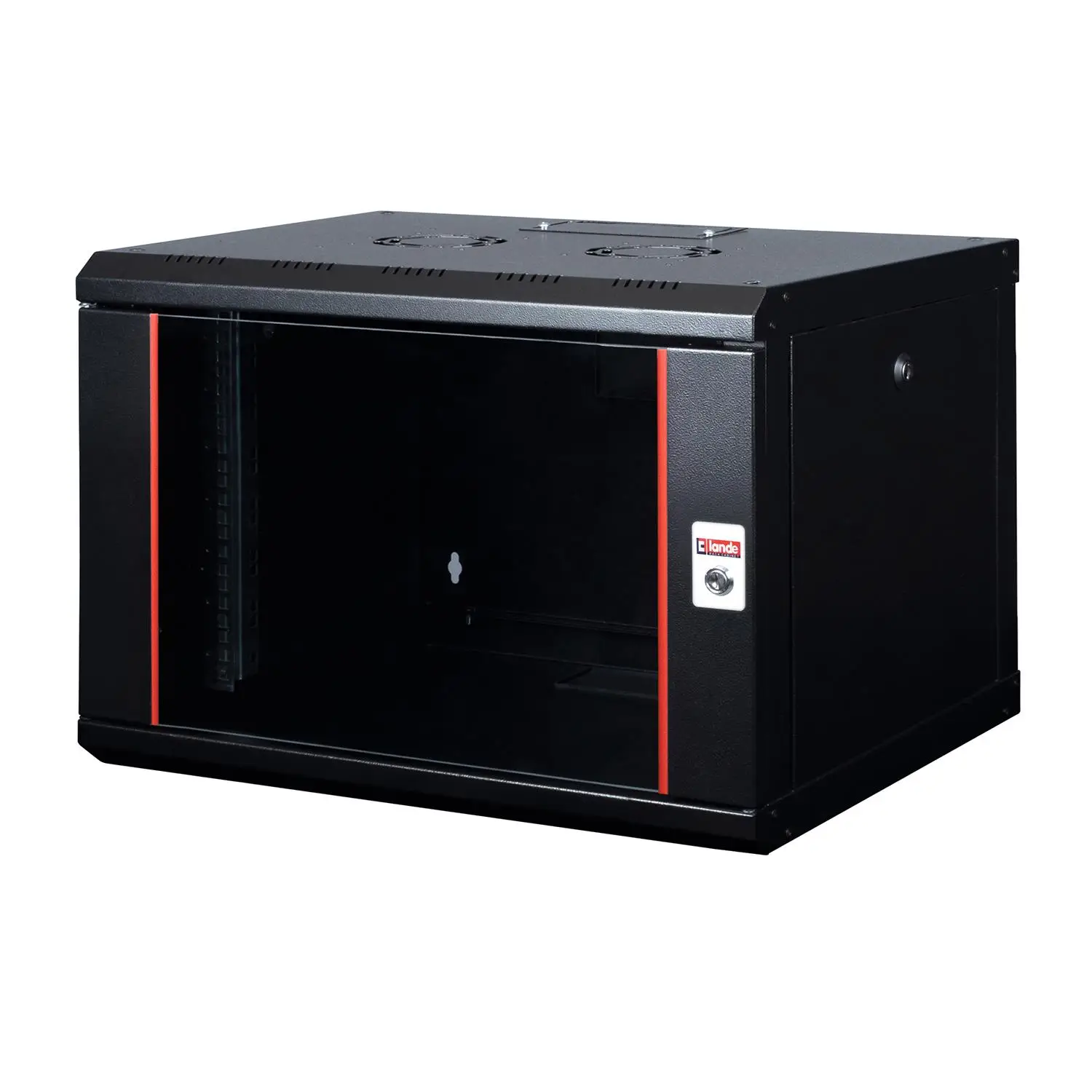

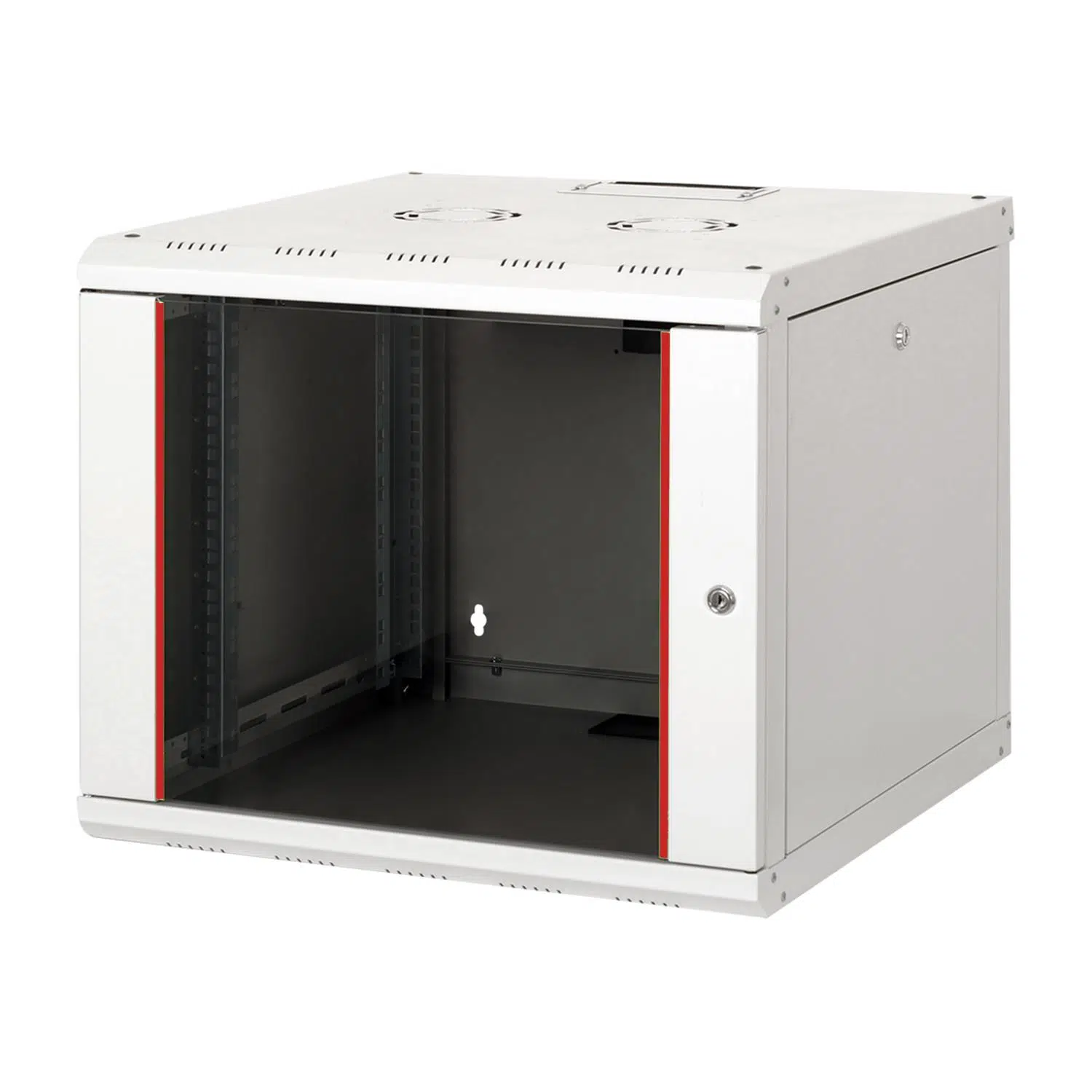

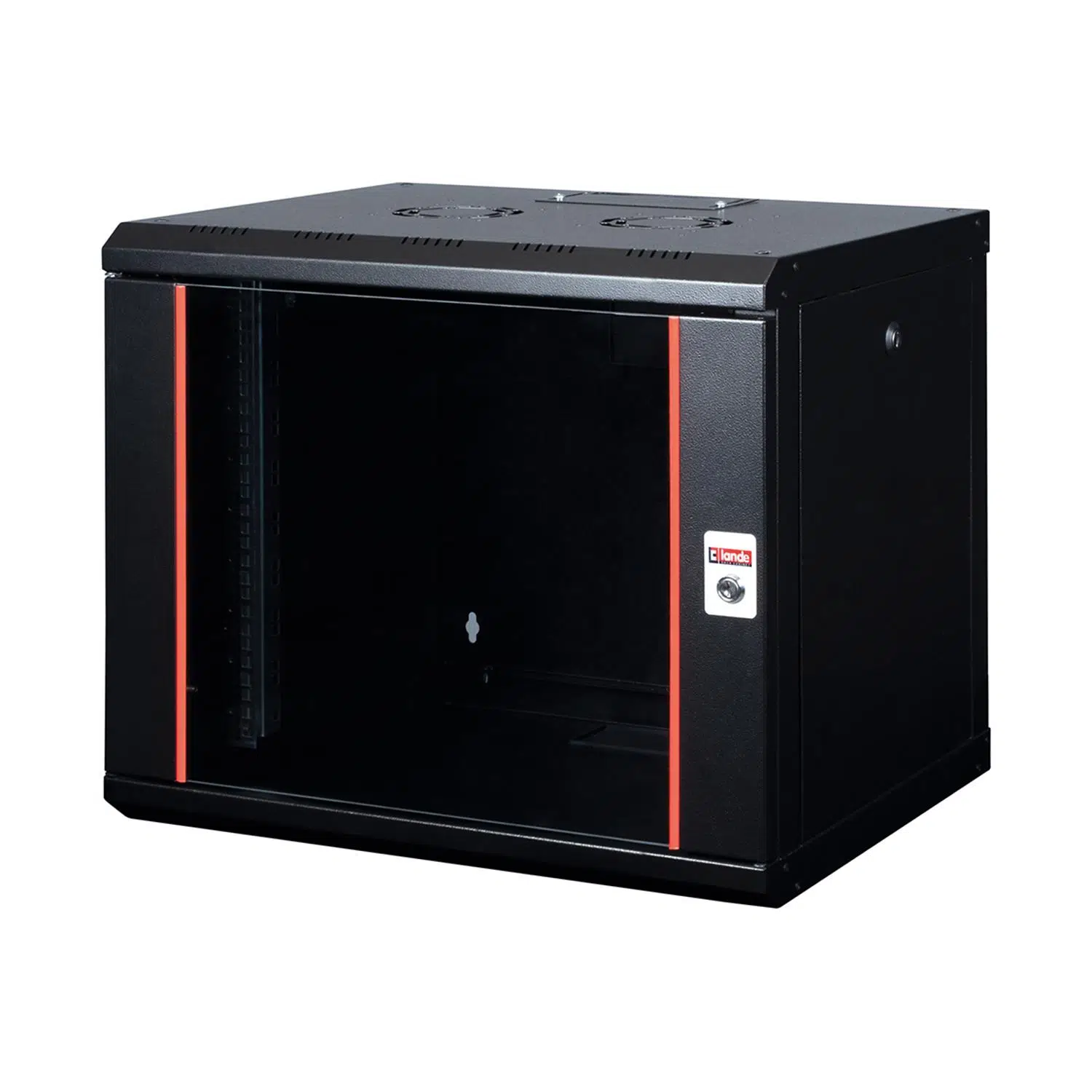

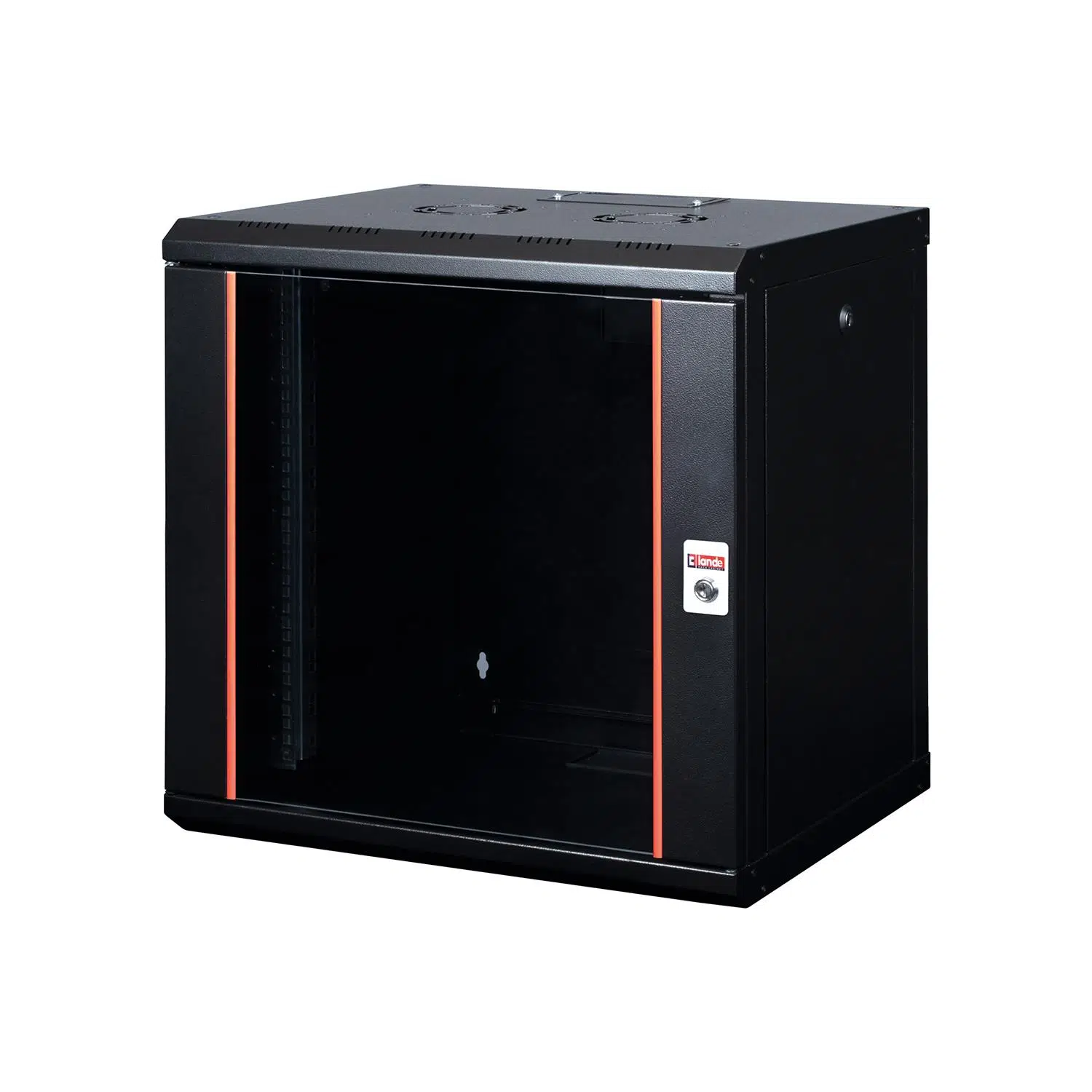

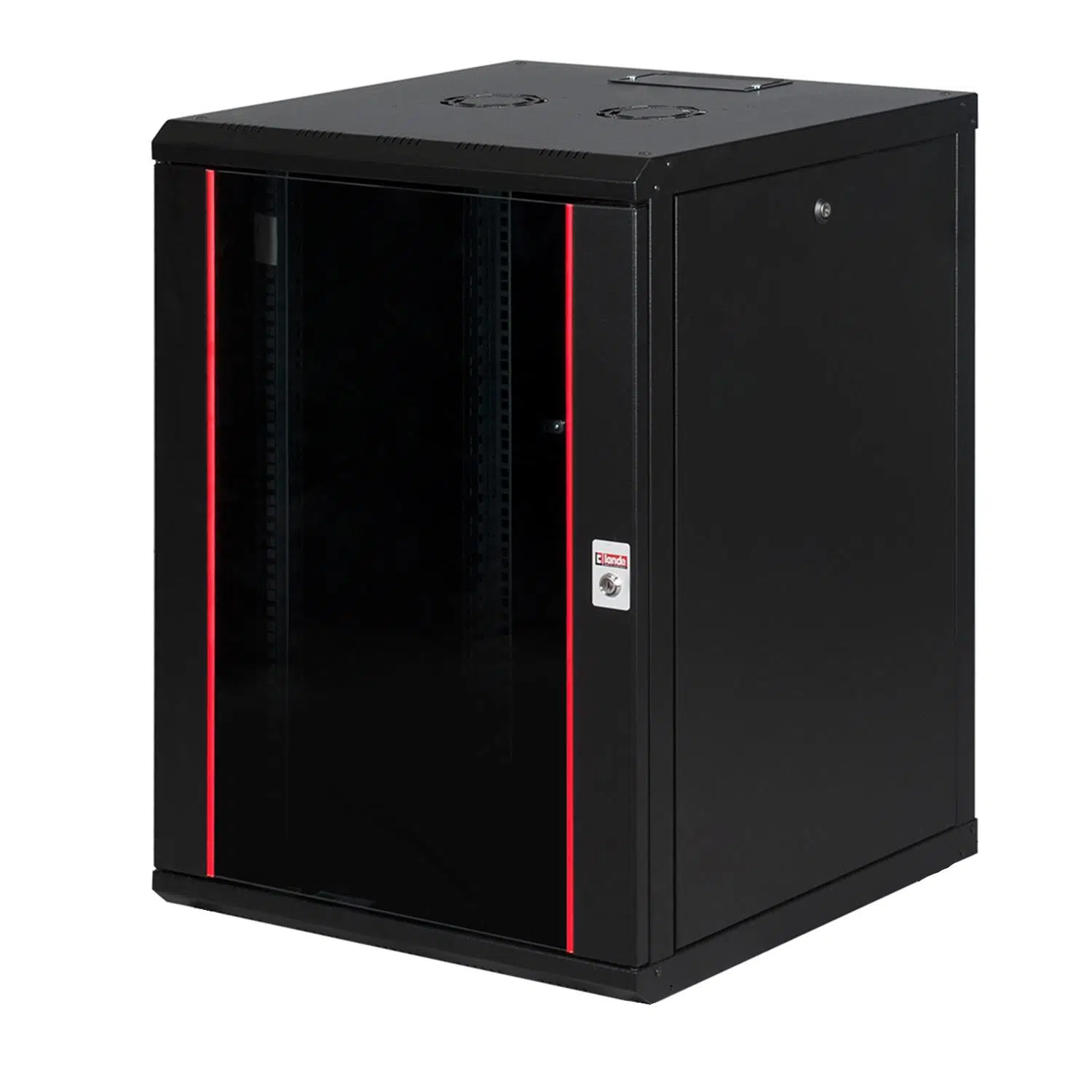

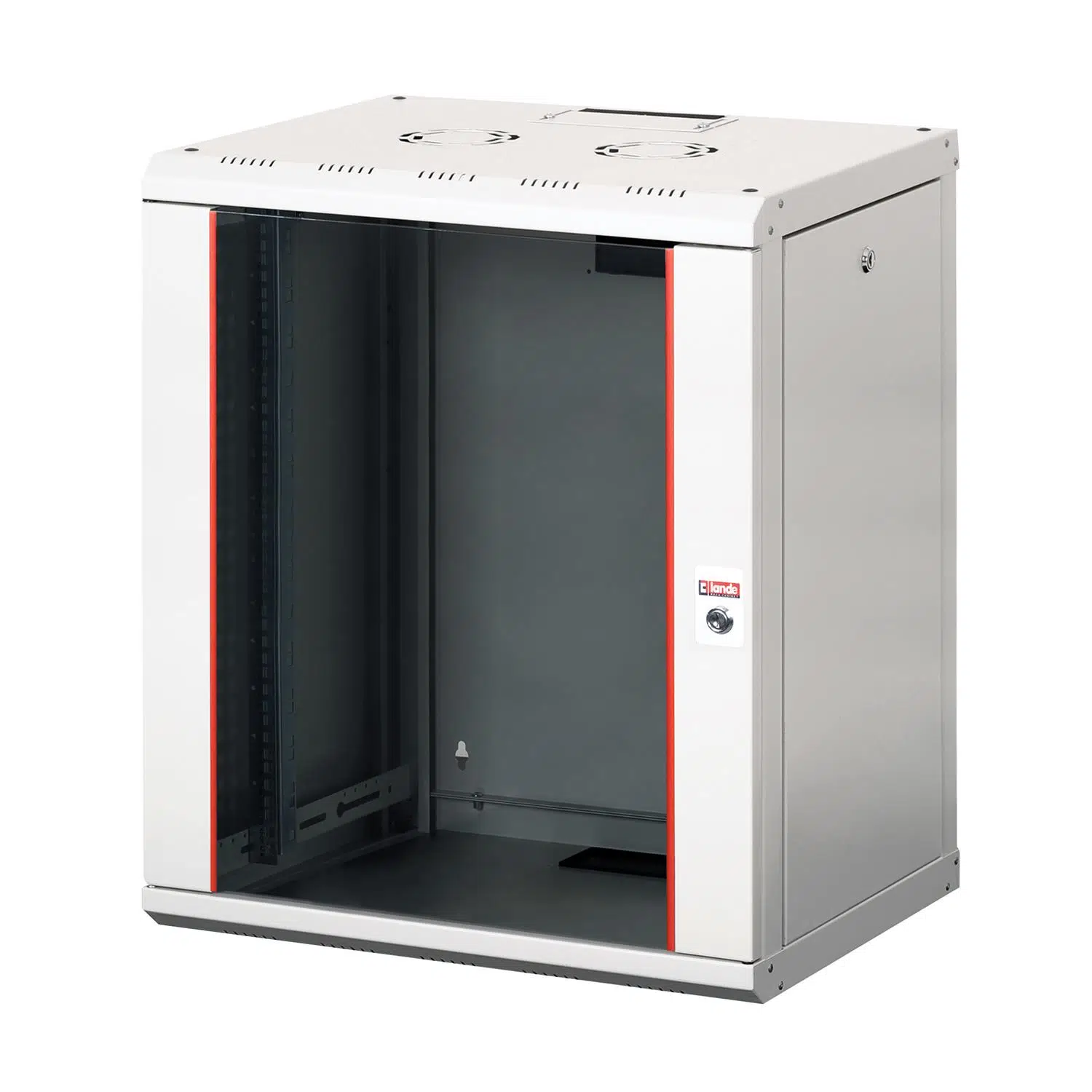

LANDE 19" PROline Series Wall Mounting Cabinets are professional enclosure solutions designed for network infrastructures and supplied as fully assembled units. The series has a nominal 100 kg wall mounting load capacity and has been tested with 3 times the nominal load. It is suitable for Switch, Patch Panel, cabling equipment, telecommunication equipment, UPS, and battery applications. The PROline Series is available in W=600 mm width with D=450 mm and D=600 mm depth options, and 7U, 9U, 12U, 16U, and 20U height alternatives. The cabinets are supplied as standard with a safety glass front door, lockable removable side panels, and a rear panel. D=450 mm models include 2 adjustable 19" mounting rails, while D=600 mm models are supplied with 4 adjustable 19" mounting rails. Passive ventilation slots and an optional fan installation on the top panel, a rubber-edged sliding cable entry system, and removable front door and side panels simplify installation and maintenance. Nanotechnology pre-treatment, Bonderite/Henkel chemical pre-treatment, and an 80–120 micron epoxy powder coating provide 500+ hours salt spray test performance. The series is available in RAL 7035 Light Grey and RAL 9005 Black.
